You can control the camera that supports PTZ function by connecting an external PTZ controller to the NVR/VMS.

The following models of PTZ controllers are supported.

Model name

KSC-3000U

WTX-1200A

WTX-1100A

It is available by checking Settings - Screen - Keyboard Behavior Use, then selecting Model and Driver.

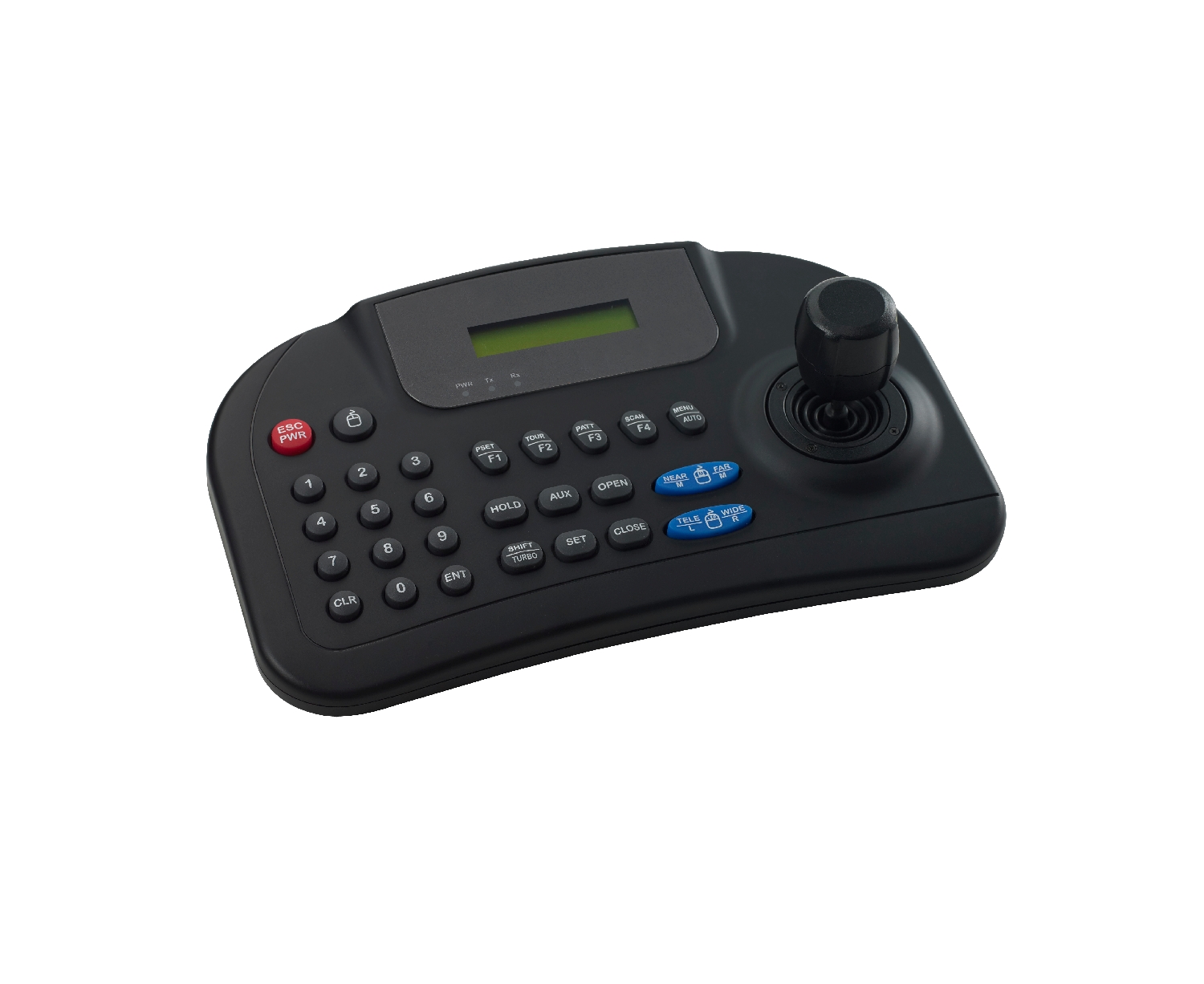

WTX-1200A Configuration Example

Connect the power to the WTX-1200A and connect the USB to the NVR/VMS.

Check Settings - Screen - Use Keyboard Behavior and select WTX-1200A. The driver is automatically selected as shown in the photo during a normal connection.

Set the controller to DVR mode.

If you select the camera with the mouse and control it with joystick or enter the channel number +ENT from the controller, the channel will change to 1x1 mode, and if you enter the joystick again, it will go to the powder screen.

Below are the features connected to the WTX-1200A controller. This feature is subject to change.
