  1. NDS

Configuring the layout

PreviousSetting the resolutionNextVideo Background Picture

Last updated 15 days ago

Was this helpful?

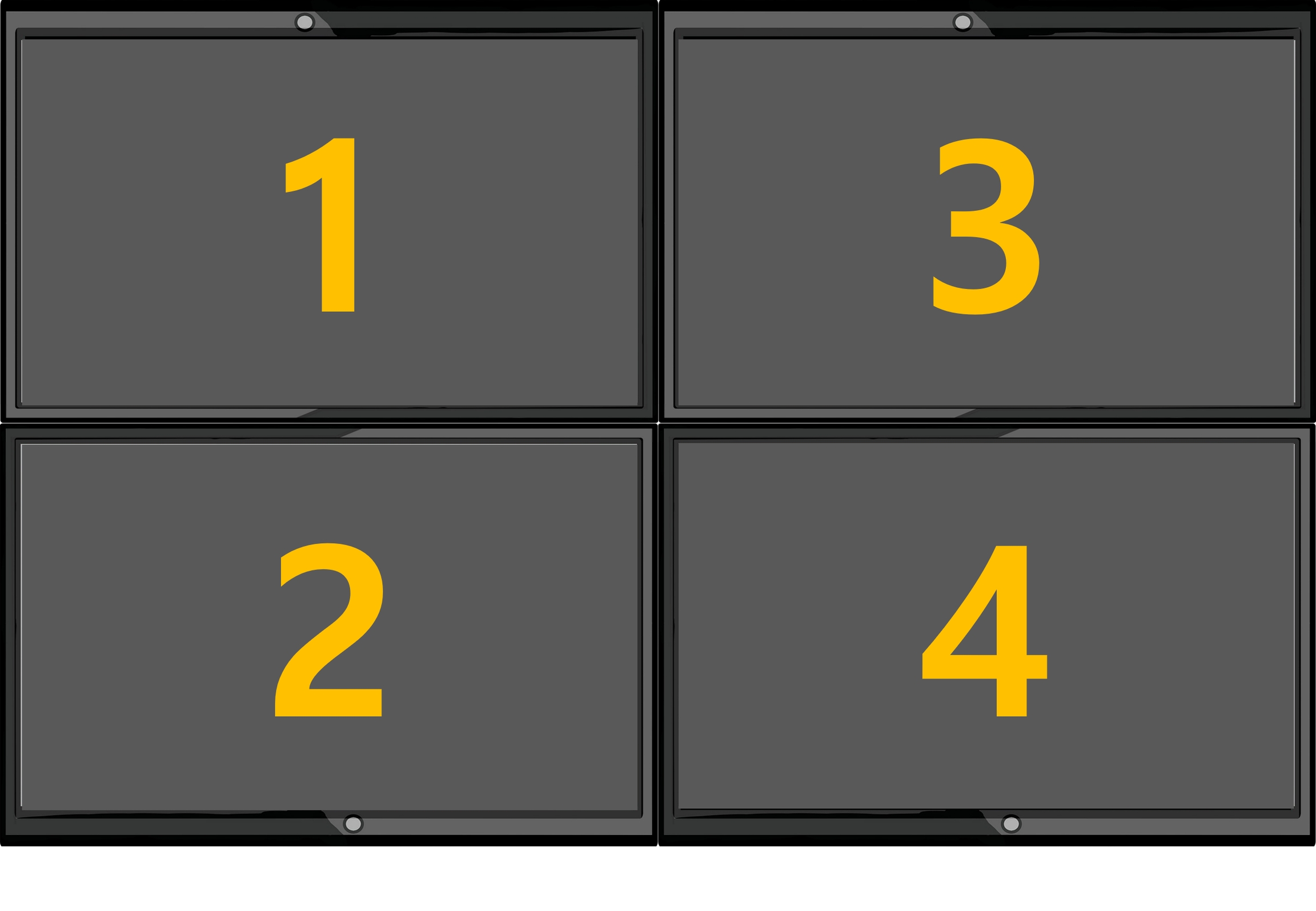

The monitor installation arrangement and layout must be set the same.

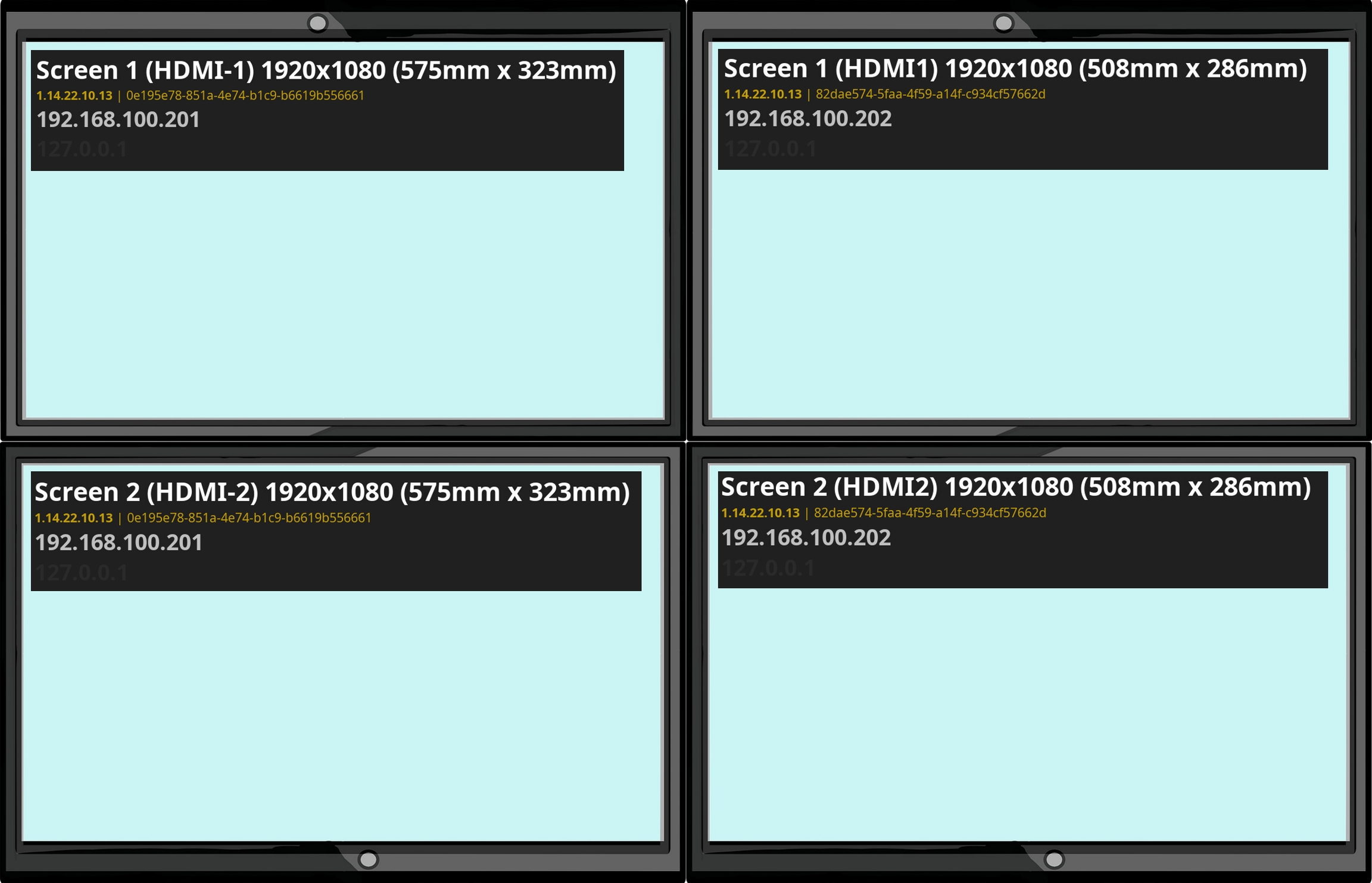

Check the IP and Screen number displayed on the screen.

CMS Settings - Video Wall - It can be set in the monitor layout.

Add the monitor to match the number with the IP and Screen number shown on the monitor.

Each monitor can be moved to X and Y coordinate values. The coordinates vary depending on the monitor resolution, and in the case of the picture above, there are four FHD (1920x1080) monitors. Therefore, for monitor number 4, it is located at X : 1920, Y : 1080. Number 1 X : 0, Y : 0 Number 2 X: 0, Y: 1080 Number 3 X : 1920, Y : 0 Number 4 X : 1920, Y : 1080

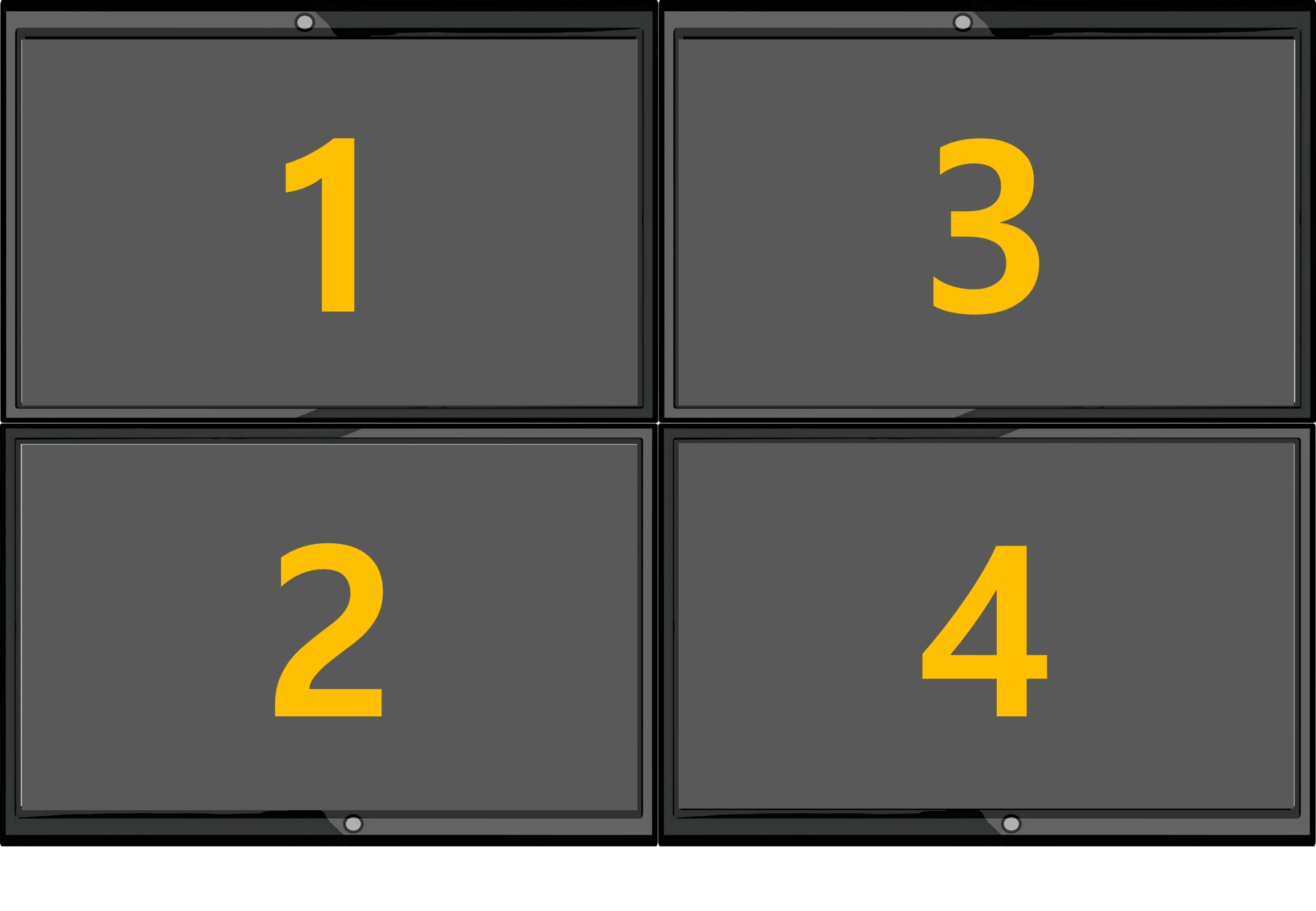

Check the monitor number

The monitor added to the layout can be verified by outputting the numbers configured in the layout to the monitor when the Show Number/Name button is pressed.

When configuring the layout, there is no set rule for monitor number and order, and it can be used if the layout number set by CMS and the actual monitor number match.
