  1. NDS

Setting the resolution

PreviousSetting up a networkNextConfiguring the layout

Last updated 15 days ago

Was this helpful?

CMS Settings - Video Wall - Display Server - Can be set on the screen.

You can set the resolution and rotation according to the connected monitor output.

When configuring a video wall, all screens that use the same layout must have the same resolution. (Different NDS models have different decoding performance by resolution.)

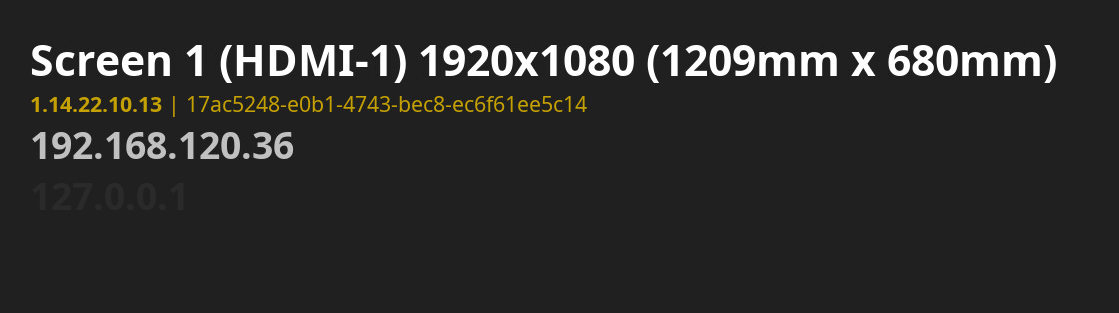

You can check the Screen number, resolution, and IP on the connected monitor.

To rotate the monitor

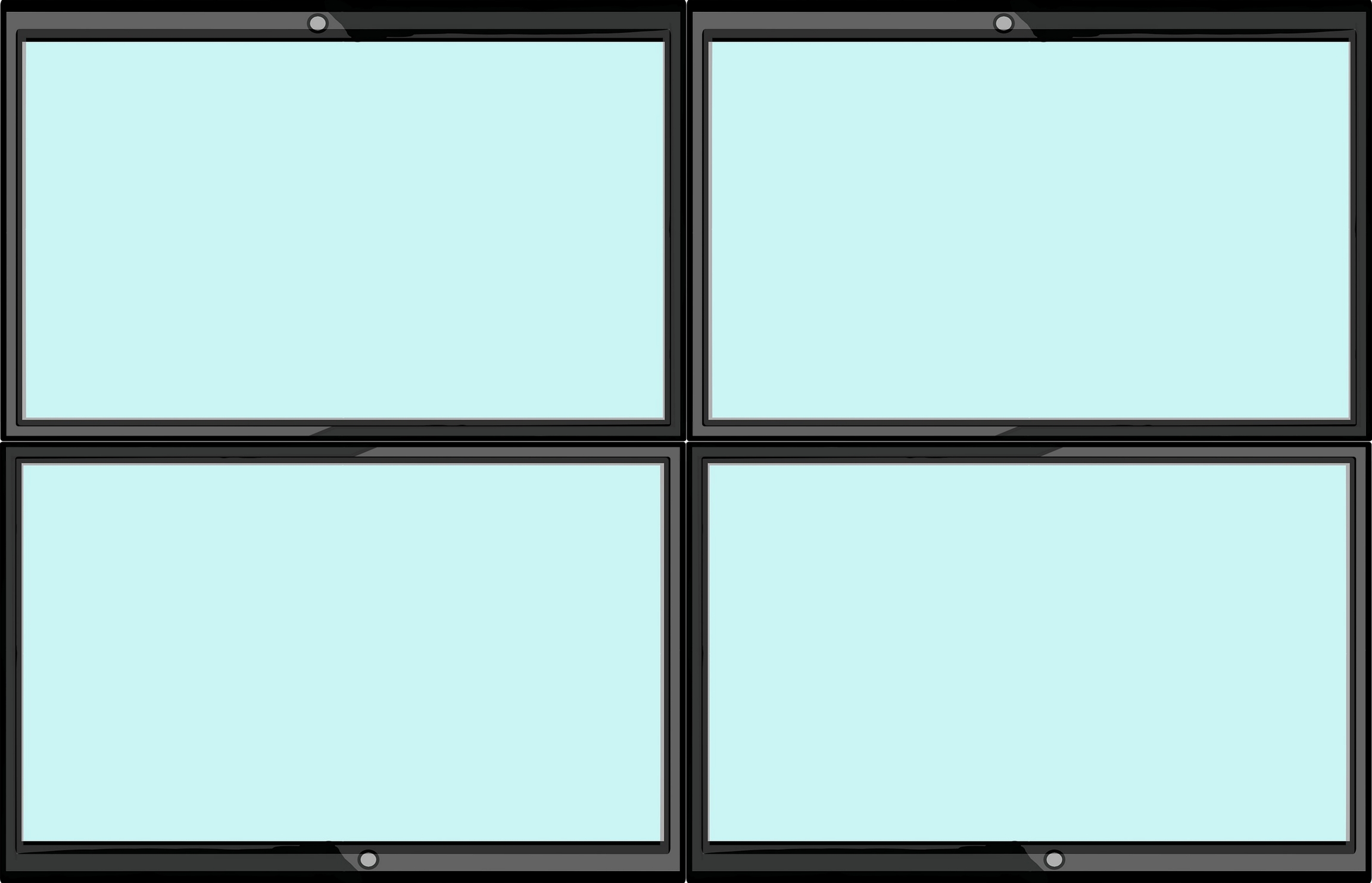

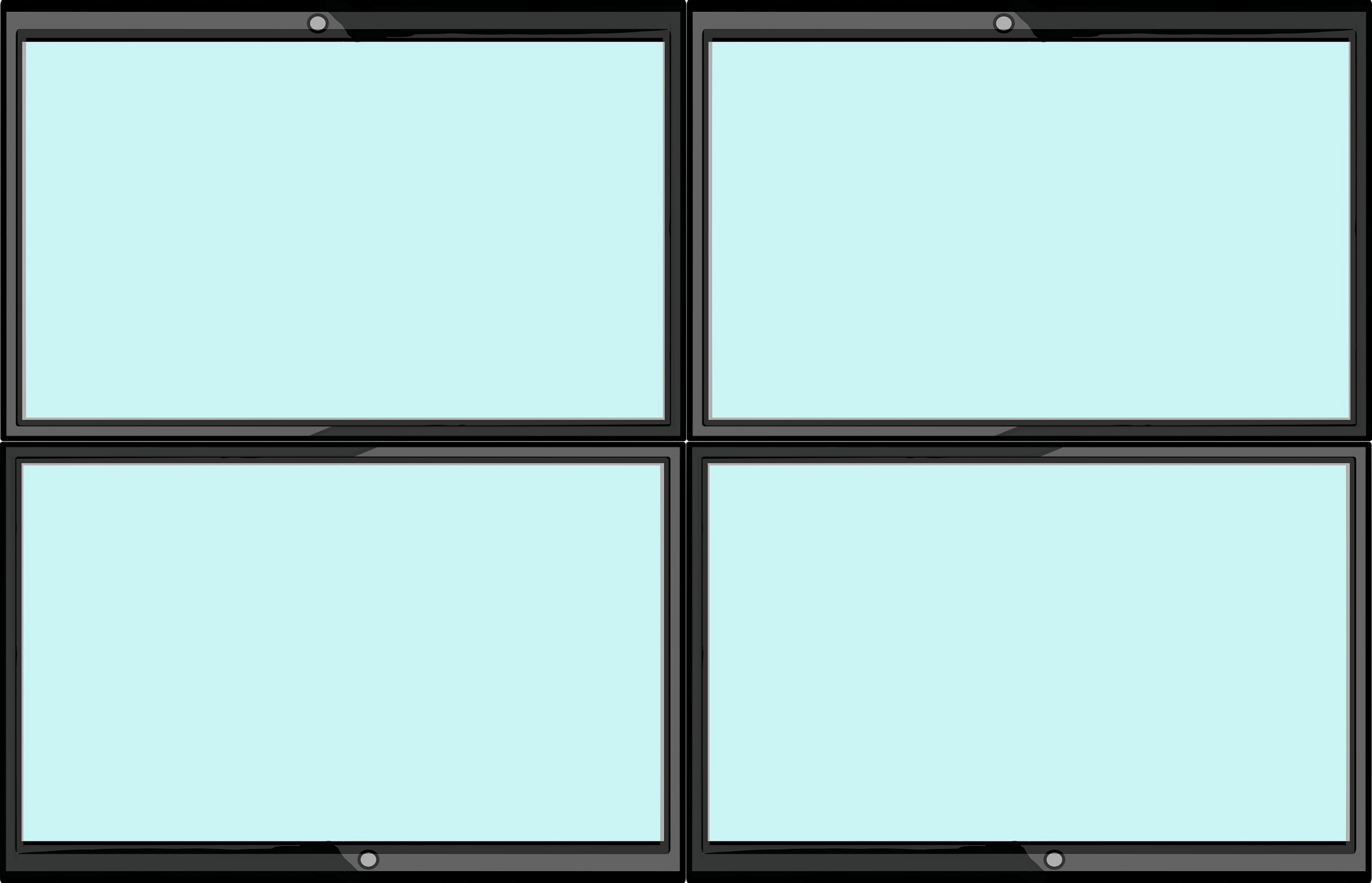

When configuring a video wall using a regular monitor, the monitor can be rotated 180 degrees to install if it is difficult to configure due to the bottom bezel / button.

You can change the monitor output by selecting the monitor you want to rotate and selecting the rotation as 180 degrees.

Info

모니터에 아무것도 표시되지 않거나 모니터 이름이 사진과 같이 Virtual 로 확인되는 경우 모니터 인식이 제대로 되지 않은 상태입니다. NDS는 부팅 시 모니터를 인식하므로 NDS 전원 연결 전, 케이블 연결 및 모니터 전원을 켠 뒤 NDS에 전원을 연결 합니다.
